PU Pouring Machine
Hiqh quality aluminum profiles processing machine

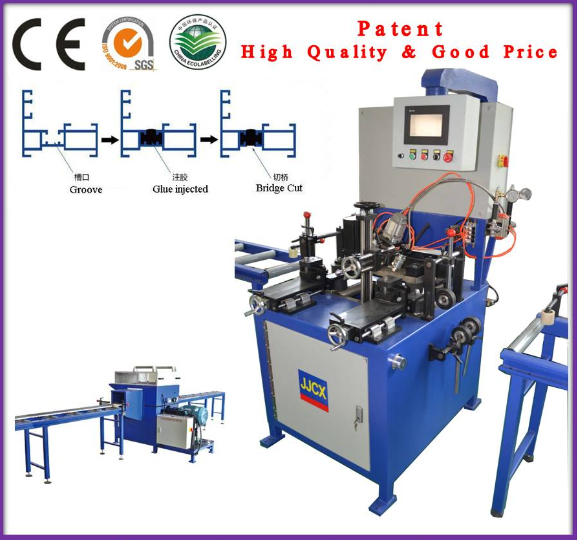

This equipment has two main functions: inject the raw materialinto the groove of aluminum profiles, when the material cured, cut off the bridge; Then, the aluminum profiles obtain the functions such as heat insulation, etc. (The raw material is thermal insulation material, the glue)
Comparing with old aluminum profiles, the new one has wonderful heat insulation function, and much much stronger, especially could save a lot of cost.

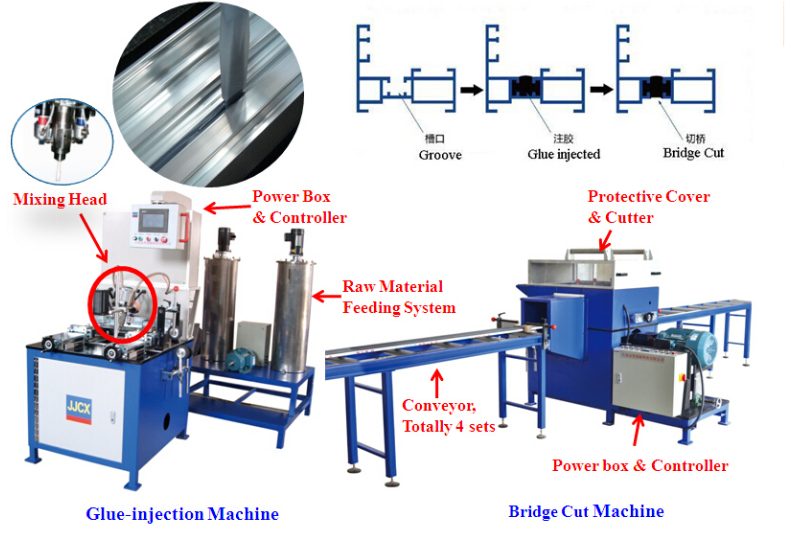

Constructions and Main Parts:
| Construction | Dimensions | |
| 1 | Material Feeding System | |
| 2 | Glue-injection machine | 1200*1400*2100H mm |
| 3 | 4 Conveyors | 400*6000mm |
| 4 | Bridge cutting machine | 1750*1110*1550H mm |
| 5 | Dust collector |
| Glue-injection machine | Bridge cutting machine | ||||
| Dosing | Viking metering pump | Blade |
Dia 300mm, 350mm, or 400mm THK: 3-4mm |
||
| Feeding | Ingersolland plunger pump | Driving | Electric motor driving synchronous pulley | ||
| Mixing head | Patent design, alloy steel | Security | Special protective cover, if the cover is open, or the small door for changing blade is open, the power would be cut off. | ||
| Control | CNC, control raw material temprature, mixing, feeding automatically. | ||||
| Material barrel | 70L, with material level controller, mixing settings, temprature controller, feeding system. | ||||
| Cleaning | By dichloromethane, stainless steel material container | ||||
| Driving | Electric motor driving synchronous pulley | ||||
Specifications:
| Glue-injection machine | Bridge cutting machine | Note | |||
| Cavity Size | 220W*150H mm | 220W*150H mm | can be adjusted for custom-made | ||
| Power | 380V, 6KW | 380V, 9KW | Can follow the national standard | ||
| Running Speed | 0~60m/min | 0-60m/min | |||
