Aluminum window machine

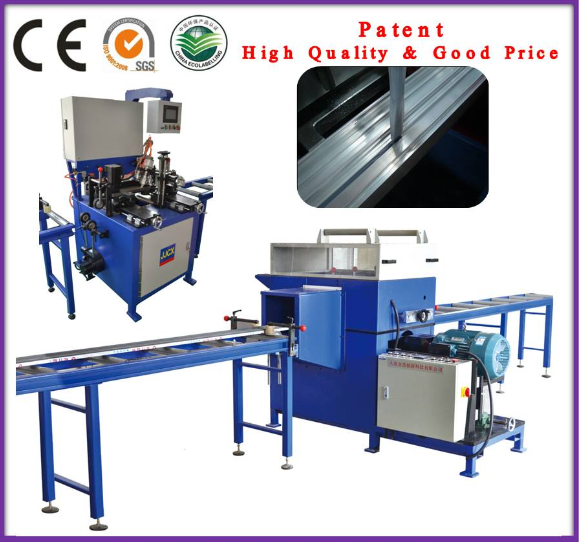

Hiqh quality aluminum profiles processing machine

This equipment has two main functions: inject the raw materialinto the groove of aluminum profiles, when the material cured, cut off the bridge; Then, the aluminum profiles obtain the functions such as heat insulation, etc. (The raw material is thermal insulation material, the glue)

Comparing with old aluminum profiles, the new one has wonderful heat insulation function, and much much stronger, especially could save a lot of cost.

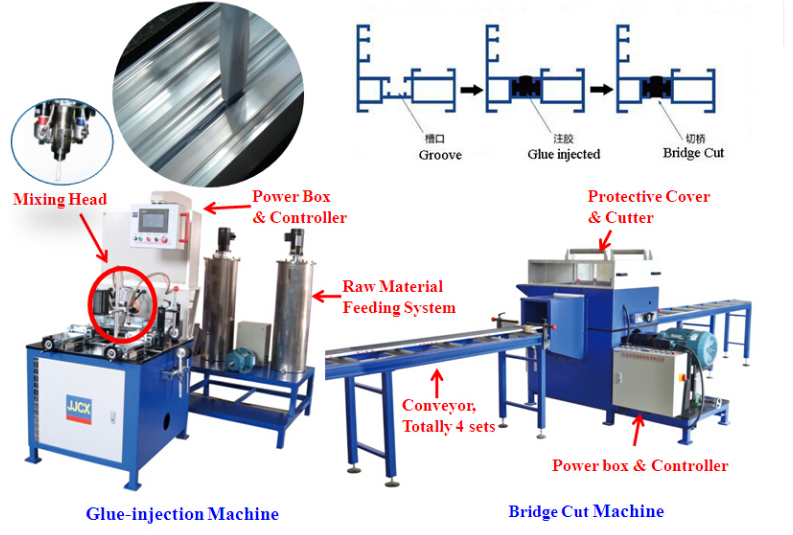

Constructions and Main Parts:

  Construction Dimensions
1 Material Feeding System
2 Glue-injection machine 1200*1400*2100H mm
3 4 Conveyors 400*6000mm
4 Bridge cutting machine 1750*1110*1550H mm
5 Dust collector

  Glue-injection machine   Bridge cutting machine
Dosing Viking metering pump Blade Dia 300mm, 350mm, or 400mm
THK: 3-4mm
Feeding Ingersolland plunger pump Driving Electric motor driving synchronous pulley
Mixing head Patent design, alloy steel Security Special protective cover, if the cover is open, or the small door for changing blade is open, the power would be cut off.
Control CNC, control raw material temprature, mixing, feeding automatically.
Material barrel 70L, with material level controller, mixing settings, temprature controller, feeding system.
Cleaning By dichloromethane, stainless steel material container
Driving Electric motor driving synchronous pulley

Specifications:

  Glue-injection machine Bridge cutting machine Note
Cavity Size 220W*150H mm 220W*150H mm can be adjusted for custom-made
Power 380V, 6KW 380V, 9KW Can follow the national standard
Running Speed 0~60m/min 0-60m/min

Jinjie is a professional supplier and manufacturer of solutions for polyurethane automatic equipment system and other sealing systems, and integrated with design, R&D, production, marketing, and after-sales services. The company is located in Dalian, one of the most important port cities in the north of China.

We have excellent R&D team: A group of professionals majored in chemical engineering, machinery, automatic control, and etc. We are versatile and powerful in machining: One specialized factory for machining, where custom-made equipment can be produced quickly. The core technology of product is top-level: it is from German, and the components are from world-renowned suppliers. Our service system is perfect: huge distribution network, professional technology support, excellent after-sales service group and so on.

Main product: 2/3-components FIPFG sealing solutions equipment, PU Foam Sealing Equipment, Microscale Sealing System, Cabinet Sealing Machine, Lightings Sealing Gasket Machine, Automatic Car Sealing System, Silicon Sealing equipment, Dispensing Machine, Spreading Equipment, Gluing Machine, Thermally Insulating Aluminum Profiles Gluing & Cutting Equipment, Custom-made Machineries etc.

We Believe: Innovation Leads The Future, Cooperation Creates A Better Future.
