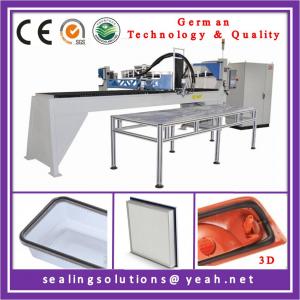

PU Foam gasket manufactuting machine
Technical parameters：
High quality rubber gasket machine manufacturer
This machine can mix two (or three) kinds of raw material together and pour to pre-set position, groove, mould, or the flat surface of workpiece directly. Through chemical reaction, the liquid raw materials form elastic sealing strip in seconds. There is no joint or cut point, so comparing with other kind of sealing its effect is much better and with longer using life. And, during the forming process, the sealing strip surface become very smooth and without any crack, so its sealing effect is perfect. And, because it can stick on the workpiece naturally and tightly, no gluing worker is needed, huge cost is saved from labor and time, etc.
Foam sealing equipment is used more and more in sealing fields like controlling cabinets, lighting, motor vehicle, machining industry, etc. It is leak proof, oil proof, water proof, damping, noise proof, and sealing, etc. It is in accordance with certifications like UL/CE, MIL-STD-167, EN50298, and so on.

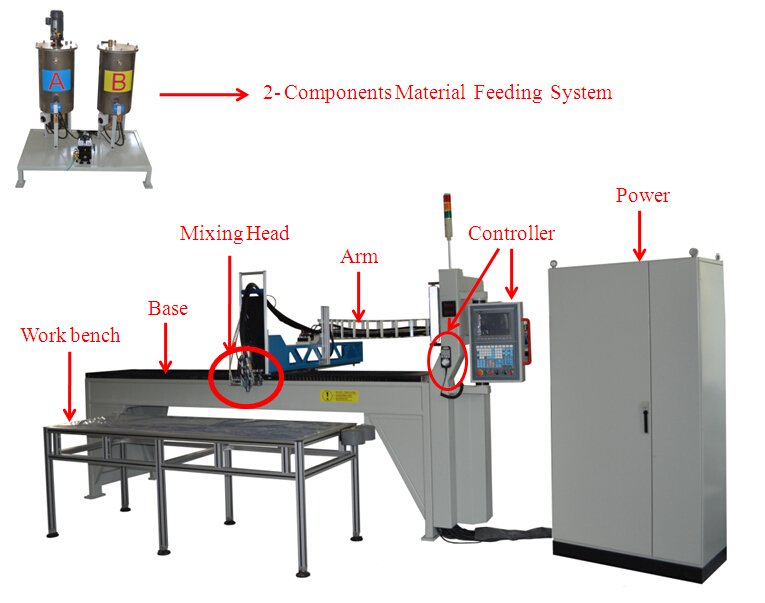

Gasket Making Machine Equipment Construction:

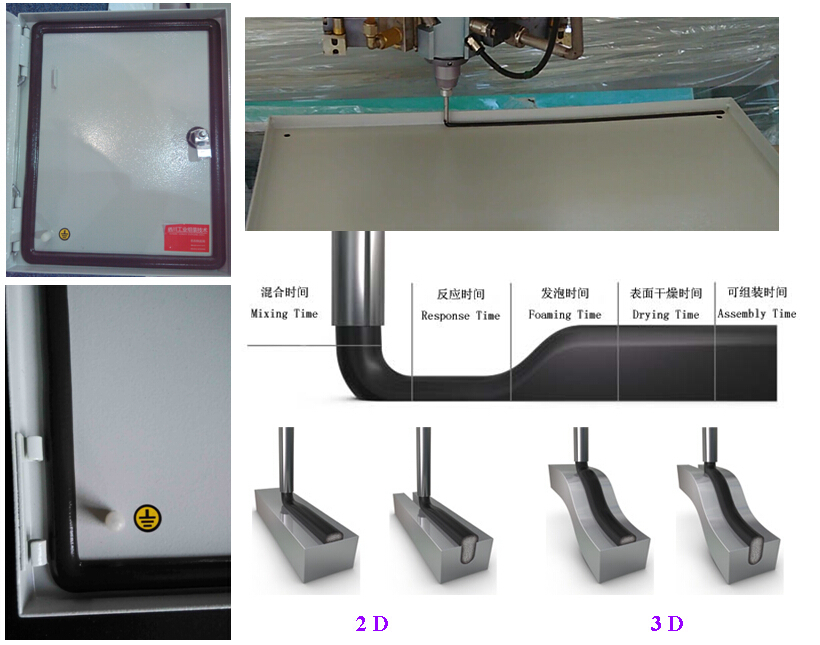

Gasket Making Machine Raw Material Reaction Principle:
Gasket Manufacturing Machine Standard type (3.5-30mm) equipment specifications:
| Technical Specifications | Some Other details | |||
| Mechanical Arm | 6*3 m | Technology | From Germany | |
| Workbench | 2.4*0.9 m | Mixing Head | From Germany | |
| Material Bench | 1.2*0.85 m | Operation | From Taiwan Syntec, CNC system | |
| Working Stroke | 2.4*1.2*0.25 m | Hand Controller | From Taiwan Syntec | |
| Strip Width |
3-30 mm (groove 3-30) (flat 5-30) |
Motor | Panasonic Servo Motor | |
| Gluing Precision | 0.01 mm | Metering Pump | From Germany, Barmag | |
| Working Speed | 0-12 m/min | Cleaning | Water Risining | |
| Max Speed | 30 m/min | Material Barrels | Double walled stainless steel, control temperature automatically | |
| Repeat Positioning Accuracy | +/- 0.03 mm | Control Mode |
8 axis linkage, 1X+1Y+1Z+1mixing+2metering+2reserving |
|
| Dosing | 0.5-5 g/s | Working Mode | 2D or 3D | |
| Filling Accuracy | 0.1 g/s | Main Color | Silver gray, refer to picture, or black, red, ect. under discussing. | |
| Mixing Speed | 0-3000 rad/min | Custom-made, OEM, ODM | OK, no problem. | |
| Mixing Ratio | 1:10~10:1 Adjustable | Certifications | CE, RoHS, ISO, etc. | |
Gasket Making Machine Main Parts
1. Mixing Head:
Water Rinsing & Modular Design, or recycled chemical solvents for arid zone countries.
2- / 3- component mixing head with high-pressure water rinsing system and dynamic mixing system, for use with liquid to high-viscous polymer reaction materials for gasketing, gluing and potting.
2. Operation System:
CNC System from SYNTEC, 180 degree rotating freely, Multi-language selection, Storing huge frequently-used information, Plus USB interface and G-code program, Manual operation is for choice also, Can be operated simply.
3. Raw Material Barrels:
Double walled stainless steel, control temperature automatically.
4. Work bench:
Aluminum alloy, strong and durable.
5. Dosing System:
Barmag metering pump, Panasonic servo motor, Microscale (2-8mm) gluing is workable.
6. Hand Controller:
SYNTEC made, easily control, response quick and steady.
7. Driving system:
Panasonic servo motor, work steady, long using life.
